Ensuring Power Reliability in Challenging Outdoor Environments #

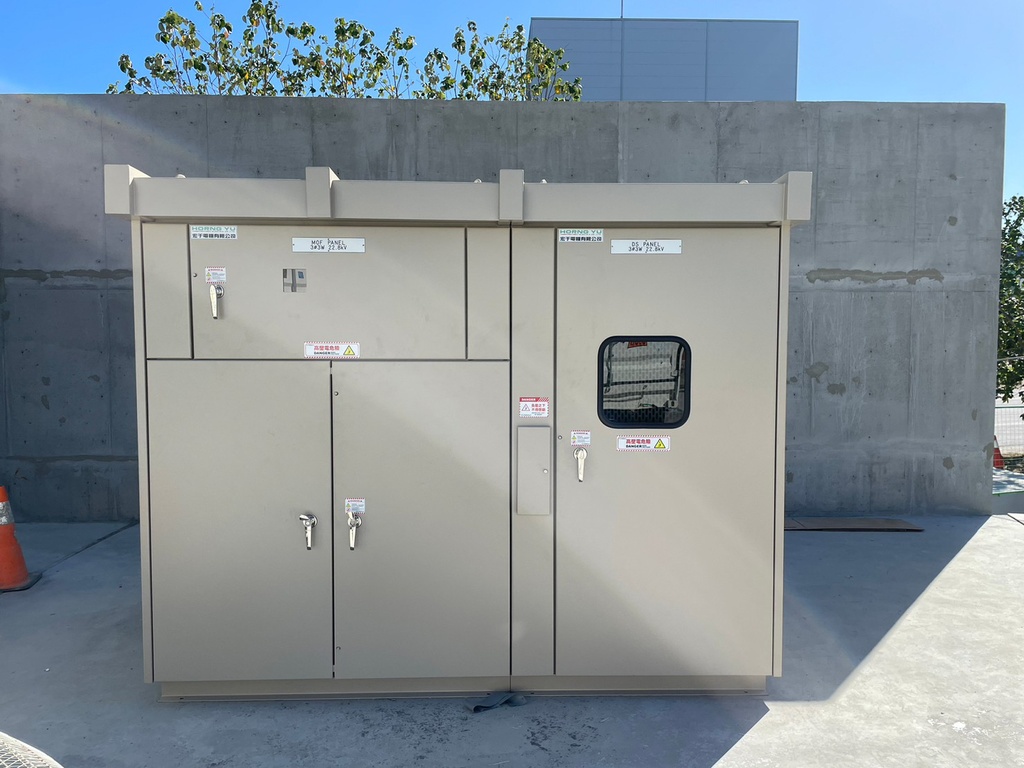

Outdoor power distribution systems must withstand a variety of harsh conditions while maintaining safety and operational stability. Our outdoor weatherproof high voltage switchgear is engineered to meet these demands, providing a robust solution for power plants, substations, industrial zones, and other outdoor applications.

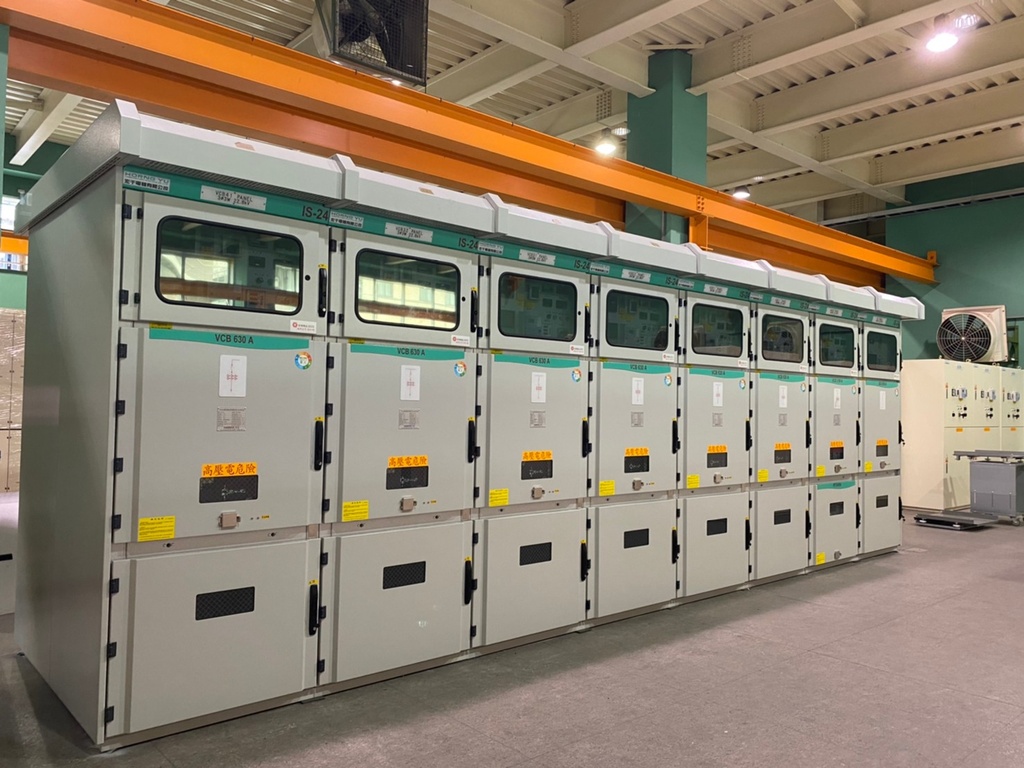

Product Overview #
The outdoor type power distribution panel is designed as a complete set of multi-panel combinations, with mechanical endurance and environmental resistance validated through rigorous type testing, including wind and rain tests. By selecting our switchgear, users are assured of compliance with government regulations and uninterrupted power supply.
Our facilities are accredited by TAF for wind and rain test laboratories, applicable to CNS 3990 and CNS 15156-200 standards. We also collaborate with leading testing organizations such as the Furukawa Foundation and the Large Power Test Center for specialized certifications, providing comprehensive reports on wind and rain resistance to streamline power supply procedures.
Key Features #
- Exceptional Wind and Rain Resistance: The enclosure is constructed from robust, durable materials and treated for enhanced resistance to wind, rain, sunlight, and dust, ensuring the protection of internal electrical components.
- Comprehensive Internal Protection: Even under adverse weather, the panel safeguards high-voltage switchgear, pressure transformers (PT), current transformers (CT), and other critical elements, supporting stable system operation.
- High-Efficiency Waterproofing and Sealing: The design incorporates a stringent waterproof seal structure to prevent moisture ingress, reducing the risk of short circuits or equipment damage.
- Standards Compliance: The switchgear is engineered to meet relevant electrical regulations and passes certified safety tests, including those required by the ‘Indoor Circuit Installation Rules.’
- Sturdy, Corrosion-Resistant Structure: Reinforced construction and corrosion-resistant materials extend service life and maintain reliability in demanding outdoor environments.

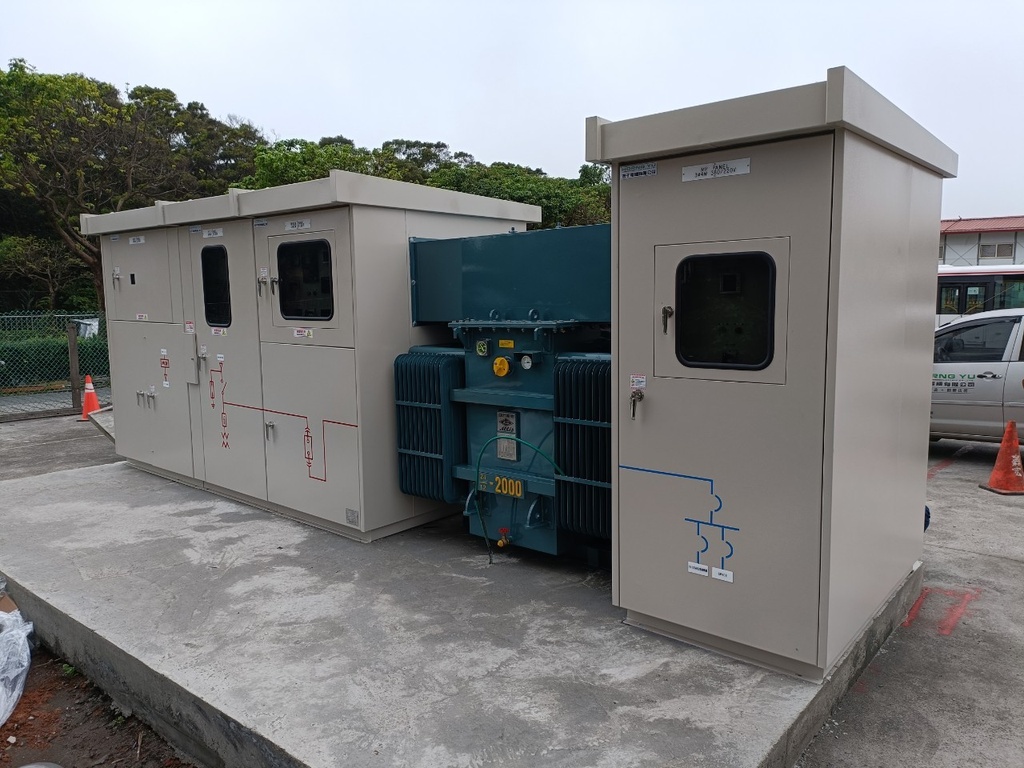

- Versatile Application: Its strong protective performance makes it suitable for power plants, substations, industrial areas, and other outdoor power distribution scenarios.

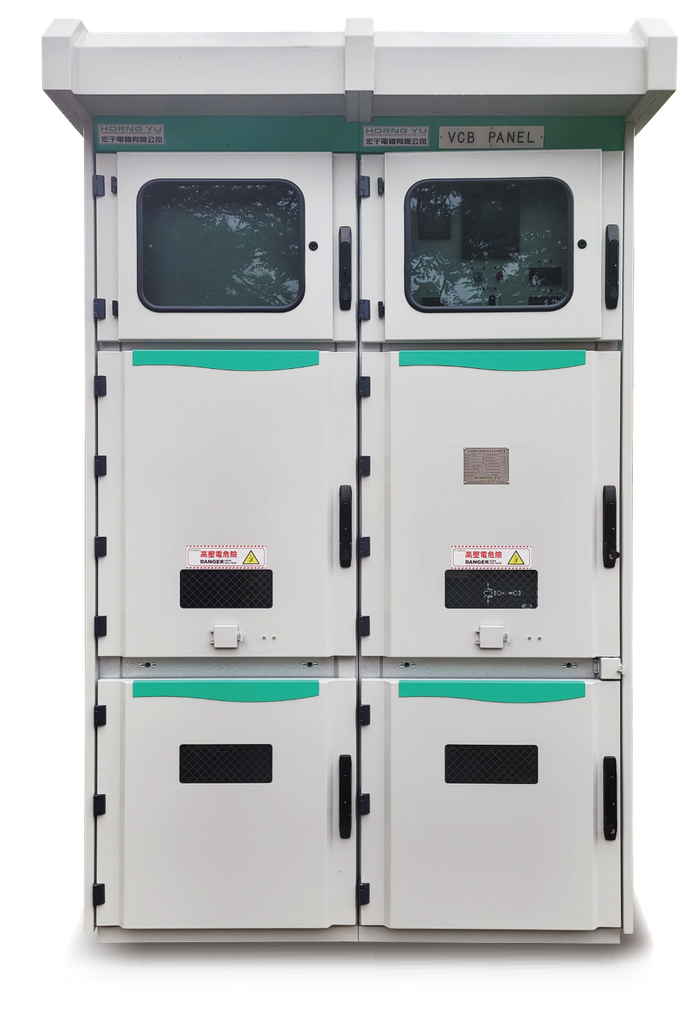

Cabinet Structure #
Middle Cabinet Part Names (1) #
- Nameplate (Manufacturer/Panel Name/Model)
- 24kV wall bushing
- Low pressure control room instrument door (waterproof)
- Door hinge
- Simulated mother line card (optional)
- Type specification plate
- Breaker room explosion-proof door (waterproof)
- Breaker room inspection window
- Waterproof circuit breaker operation aperture (lockable)
- Circuit breaker transport vehicle positioning hole
- Spare room inspection window
- Spare room door (waterproof)
- Ritual inspection door (waterproof)
- Door handle (lockable and sealable)
- Circuit breaker rated current nameplate
- Circuit breaker emergency trip device (optional)
- Door interlock emergency lock bolt
- Waterproof ground connection switch operation hole (lockable)
- Transformer capacity nameplate
- Emergency unlocking screw for spare room door
- Rear upper door (waterproof)
- Cabinet name and model nameplate
- Rear lower door (waterproof)
- Electrical room inspection window
Middle Cabinet Part Names (2) #
- Low voltage control room
- Circuit breaker room (can install CB or DS)
- Flow discharge chamber
- Cable room
- Spare room
- Nameplate (Manufacturer/Panel Name/Model)
- Low voltage control room door (waterproof)
- Circuit breaker control line plug socket (position interlock)
- Door handle (lockable and sealable)
- Top and bottom safety shield (metal)
- Breaker trolley type
- Individual dehumidifier heaters (optional turbulence fans)
- Circuit breaker room door (waterproof)
- Cabinet (aluminum-zinc steel plate)
- Spare room door (waterproof)
- Control line metal raceway
- Terminal block
- Horizontal mother row
- Confluence drainage chamber partition (including maintenance hole)
- Back upper door (waterproof)
- Wall bushing insulation
- Circuit breaker static contact (silver plated)
- Circuit breaker touch terminal block
- Flow meter
- Test obstruction element
- Grounding switch
- High voltage cable
- Rear lower door (waterproof)
- Surge arrester (silicone composite set tube type)
- Electrical wiring tower type protective cover
- Base plate
- Horizontal grounding copper bar
- Installation base
- Suspension ring
- Pressure relief device
Downloadable Resources #
- Outdoor Wind and Rain Resistant High Voltage Distribution Panel - Product Catalog.pdf
- Outdoor MOF.pdf
- Outdoor MOF.stp
- Outdoor MOF.rfa
- Outdoor DS.pdf
- Roof Exterior DS.stp
- Outdoor DS.rfa
- Outdoor DS+MOF.pdf
- Outdoor DS+MOF.stp
- Outdoor DS+MOF.rfa
- Indoor MOF.pdf
- Roof Interior MOF.stp
- Indoor MOF.rfa
