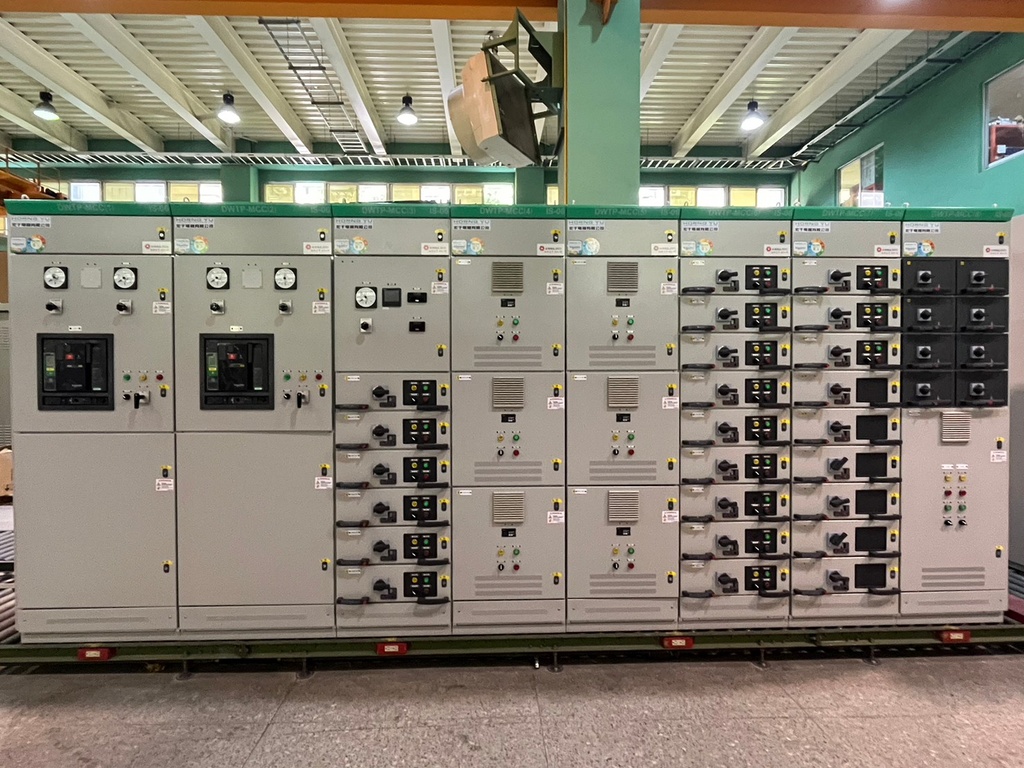

Advanced Solutions for Modern Power Distribution #
The IS-06 Intelligent Low Voltage Switchgear is engineered for AC systems up to 1,000V and DC systems up to 1,500V, supporting three-phase AC power with rated currents up to 6300A. Designed for power transmission and distribution, it offers comprehensive control, monitoring, and circuit protection. The IS-06 has passed international ILAC laboratory type tests and features a modular, reliable design that allows flexible unit assembly, ensuring a safer and more efficient power environment.
Key Features #
- Fully Extractable Loops: Both main and control loops are 100% extractable, enabling rapid, single-unit replacement without interrupting power.
- Durable Electrical Contacts: Main circuit plug springs are made from stainless steel for high mechanical strength and repeated use.
- User-Friendly Maintenance: Manual and hand-cranked mechanisms simplify maintenance and replacement of extractable units.
- Robust Overcurrent Handling: Copper sheet lamination with independent contact springs ensures strong overcurrent resistance.
- Enhanced Safety: Each drawer unit includes interlocks for separation, testing, and connection indication.
- Optimized Wiring: Control plugs are separated for easier, neater wiring with no interference.
- Accessible Instrument Panel: Open-door hollow structure allows for straightforward wiring, installation, and inspection.
- Accurate Positioning: Directional positioning prevents errors and eliminates zero-exchange malfunctions.
Product Specifications #
| Item | Description | Value |
|---|---|---|
| Standards | CNS 15783-1, CNS61439-2, IEC 61439-1/2 | |
| Rated Operational Voltage | ≤ 1000V (AC), 1500V (DC) | |
| Rated Frequency | 50/60 Hz | |
| Rated Ultimate Breaking Capacity | ≤ 2200V | |
| Rated Impulse Withstand Voltage | ≤ 12 kV | |
| Main Busbar Rated Current | 800/1000/1250/1600/2000/2500/3000/3200/4000/5000/6300A | |
| Extraction Unit Vertical Busbar | ≥ 1800A | |
| Rated Short-Time Withstand Current | 100 kA | |
| Rated Peak Withstand Current | ≥ 220 kA | |
| Application Type | Extraction type | |
| Protection Level (Closed/Open) | IP4X/IP2X | |
| Partition Type | Form 2a/2b, 3a/3b, 4a/4b | |
| Input/Output Method | Upper/Lower | |
| Box Door Color | RAL 7035 (Standard) | |
| Box Material | Galvanized steel plate (door panel SPHC painted) | |
| External Dimensions (mm) | Height 2250 (incl. base), Width 600/800/1000/1200, Depth 800/1000/1200 (+48mm for door) | |
| Installation Type | Indoor | |
| Altitude | ≥ 2000m |

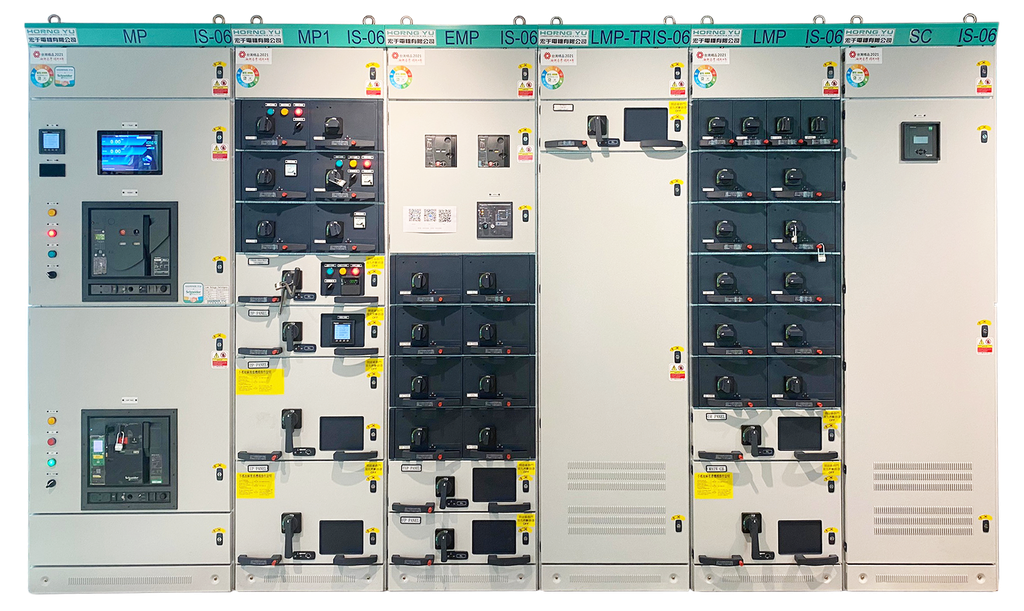

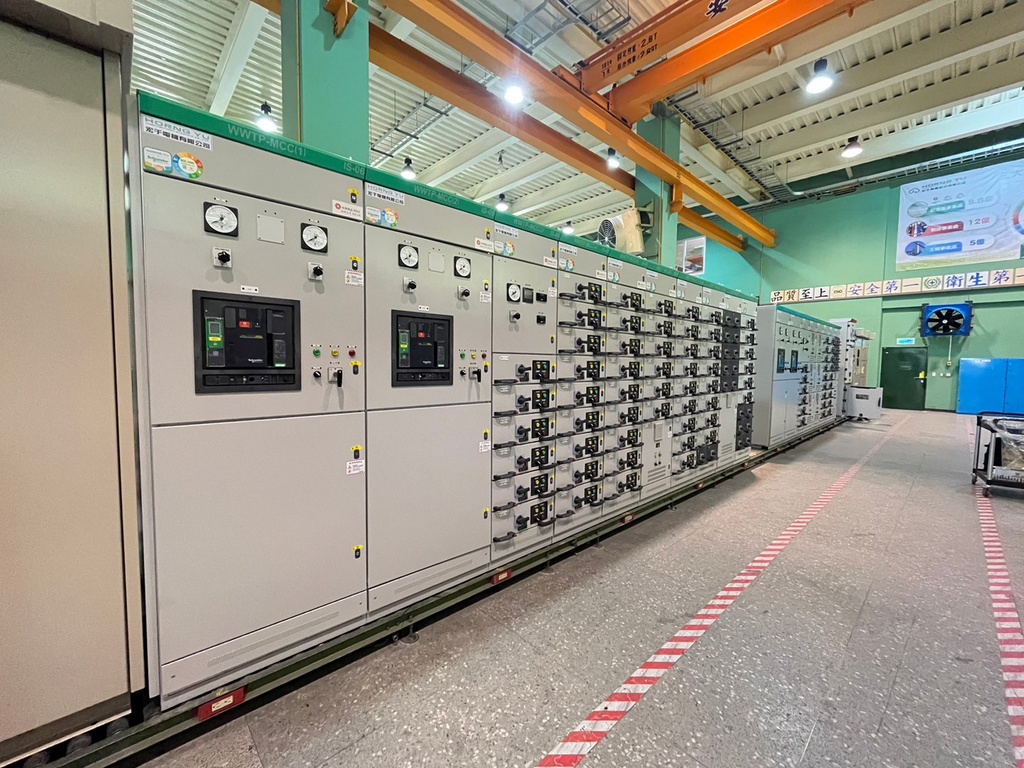

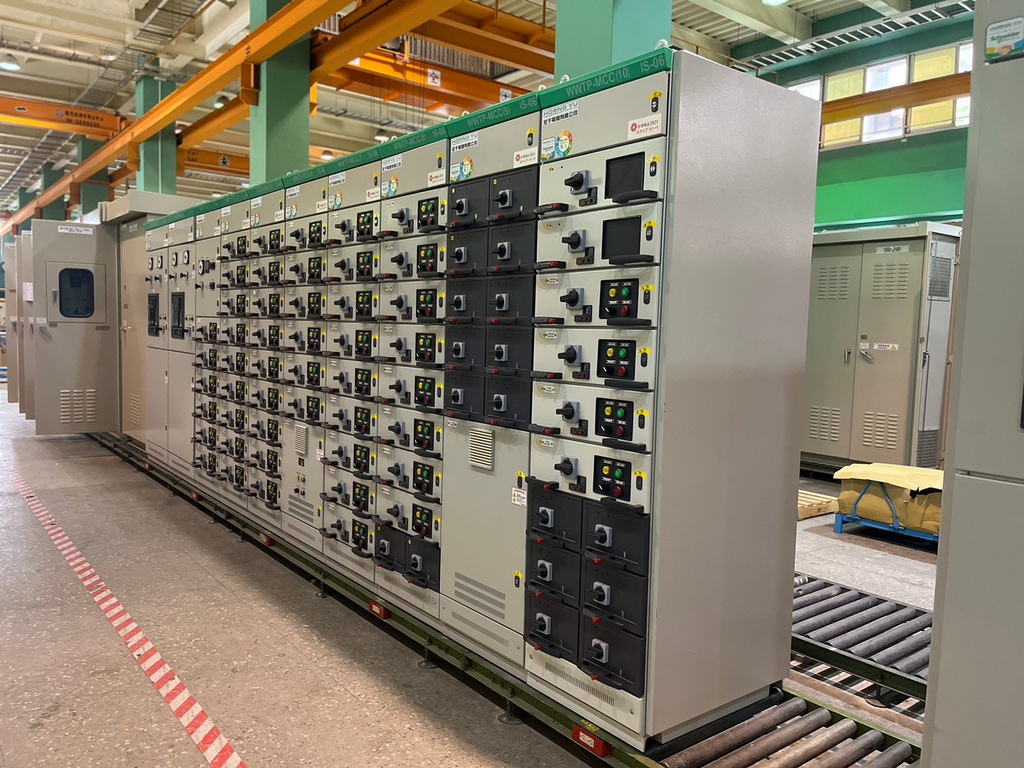

Cabinet Structure #
- Extractable Switchgear:
- Pendant
- Manufacturer/plate/model header
- Inspection doors, circuit breaker operation handle (lockable in 4 positions: ON, TRIP, OFF, RESET)
- Extractable position indicators (OPEN, DISCONNECTED, CLOSE)
- Drawer units in various sizes (1/4, 1/2, 1, 2, 3 units)
- Dust-proof ventilation holes (front, top, rear)
- Fully enclosed junction box frame with reinforcement
- Grounding current discharge plate
- Optional base
Frequently Asked Questions #
Q1: What are IS-24 and IS-06?
A1: IS-24 is an intelligent high-voltage power distribution board, while IS-06 is an intelligent low-voltage draw-out type power distribution board. Both integrate the iPanel power cloud management system, supporting AIoT, self-diagnosis, automatic adjustment, alarms, load optimization, and remote monitoring for enhanced safety and efficiency.
Q2: Which international standards do IS-24 and IS-06 comply with?
A2: IS-24 complies with IEC 62271-200/CNS 15156; IS-06 complies with IEC 61439-2/CNS 61439-2. Both have passed ILAC and Taiwan Power Research Testing Center certifications and integrate internationally certified components from brands like Schneider, Mitsubishi, and Siemens.
Q3: What are the technical specifications of IS-24?
A3: IS-24: Three-phase, 24 kV, 1250 A, short-time withstand current 25 kA × 3 s, 60 Hz, LSC2B-PM interlocking, Siemens HVX24 circuit breaker, Nemie grounding switch.
Q4: What is the capacity and applicable range of IS-06?
A4: IS-06 is suitable for voltages up to 690 V, currents up to 6300 A, and can withstand short-term currents up to 100 kA.
Q5: Is Horng Yu investing in renewable energy applications?
A5: Yes, through the iPanel Power Cloud, Horng Yu supports remote power quality monitoring, solar power integration, and smart grid solutions, aligning with ESG and net-zero carbon emission trends.
Q6: How do these products comply with ESG and carbon emission regulations?
A6: The ECO low-carbon power distribution board reduces carbon emissions via material and design improvements, with cloud-based carbon footprint tracking to support ESG and net-zero goals.
Q7: What are the advantages of copper conductor design and manufacturing?
A7: Innovative tilting rotation technology reduces material splicing, manufacturing hours, and costs, while enhancing efficiency and supporting low-carbon policies. Custom conductive components offer excellent conductivity and heat dissipation.
Q8: Why upgrade to IS-24 or IS-06 if existing equipment is present?
A8: Traditional panels only supply power passively. IS series panels offer intelligent monitoring, early warning, and remote management, reducing outage risks and production losses, especially for high-demand sectors.
Q9: How does the IS series help reduce electricity costs?
A9: Real-time monitoring and analysis via the iPanel Power Cloud enable peak load analysis and optimization recommendations, helping users save on electricity costs.
Q10: How to address unfamiliarity with intelligent power distribution boards?
A10: The IS series features a user-friendly touchscreen and cloud app, with comprehensive training and support from Horng Yu Electric.
